AUTO FEEDING ROTARY SLITTER

DESCRIPTION

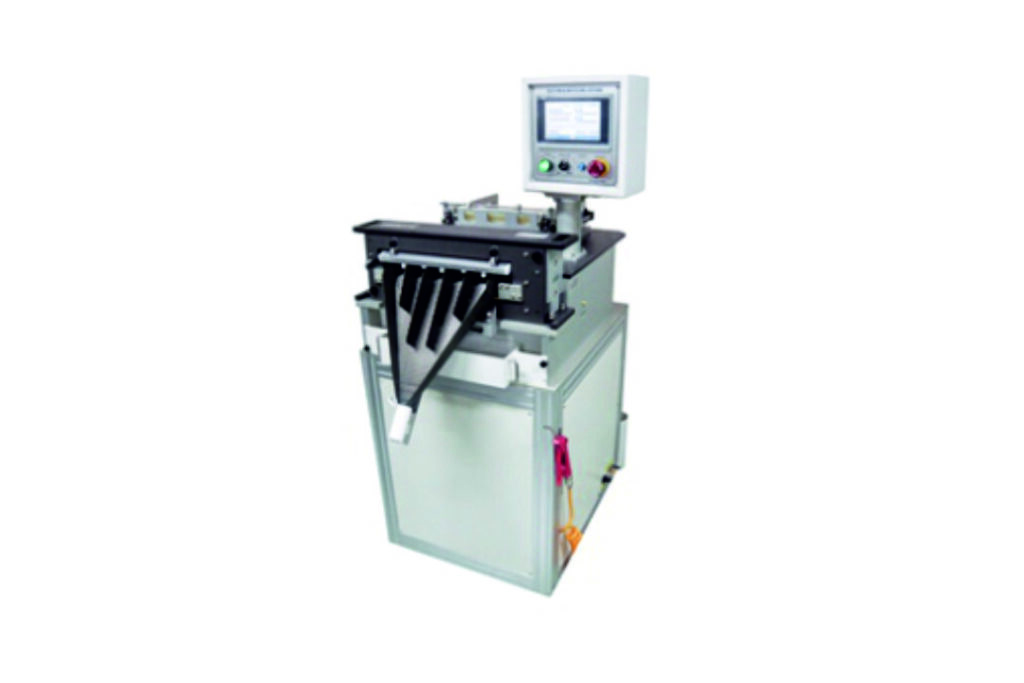

Auto Feeding Rotary Slitter is a high-speed automated slitting system that automatically loads, positions, and feeds each card for the rotary slitter to convert the card into final strips where the precisely cut strips get quickly and conveniently filled into a bottle (or a collection tray).The integration of the Auto-Feeding mechanism and the Rotary Slitting module allows for a simple yet very cost-effective solution that increases production efficiency as well as product quality due to the minimal hand-contact process.

FEATURES

• Benefits of automatic slitting system- Continuous non-stop operation for increased production output.
• Touch screen panel allows easy setup and operation.
• Auto-feed by electronic registration and motorized infeed.
• Operation mode available in time-controlled or foot switch for operator’s convenience.
• Built-in static-free Ionizer to reduce strip clinging issue.
• Specially developed blade types for optimized cutting of different materials.
• Specially coated blades for improved lifespan.
• Easy removal of blade head for multiple cut size needs. (*RAG-700 excluded)

SPECIFICATIONS

• Card Feeding Method : Automatic (Card Magazine)
• Magazine Capacity : Max. 300 cards
• Capacity : 720 cards/hour (Based on 5 second card feeding)
• Applicable Card Width : Max. 110 mm
• Applicable Card Length : Max. 320 mm
• Dimension : (Approx.) 650(L) × 800(W) × 1600(H) mm
• Weight : (Approx.) 150 kg
• Power : 110 or 220VAC, 1P, 50/60Hz
• Current : 0.5KVA, 5A
