DESCRIPTION

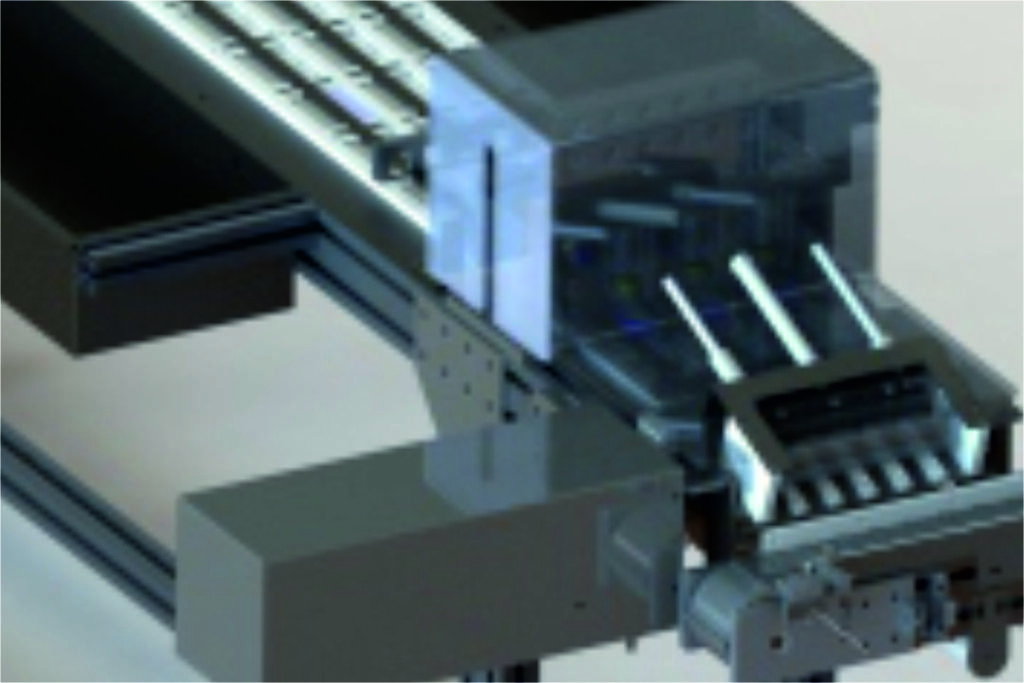

ACC-100 & ACP-100 is designed to upgrade the manual assembly process for more efficient process. The Assembly Conveyor is a long bench table with a conveyor belt in the middle to convey hand-assembled rapid test devices. The Assembly Presser completes the process by pressing the test devices to ensure that top and bottom devices are fully closed together.
This simple unit easily pays for itself as it can increase production by more than double compared to manual assembly process. (Sold separately or as a set)
SPECIFICATIONS
STANDARD MODEL 4 TRACK / 6 TRACK
DEVICE OUTPUT 100 PARTS / MINUTES
MANPOWER REQUIRED 10-12 DEPNDS ON PRODUCT DESING
OVERALL DIMENSION 5100 X 8670 X 1550
PRESSING METHOD PNEUMATIC : 6 BAR PRESSURE
SUPPLY VOLTAGE 415V AC 3- PHASE RYB-NE WIRE
DOCUMENTATION IQ/OQ/PQ/ MANAUAL / PM CHECK LIST
- Assembly Conveyor: ACC-100
- Speed: 10 m/minute
- Size: (Approx.) 2600(L)x1020(W)x730(h) mm
- Weight: (Approx.) 120 kg
- Power: 110 or 220VAC, 1P, 50/60Hz
- Current: 0.3KVA. 3A
